PRODUCTS \ Wireless LAN \ USB Adapter \ WL-700G-M

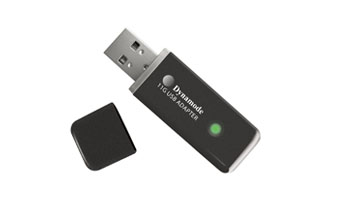

Item: 802.11G Wireless USB Adapter
Item code: WL-700G-M
Download PDF file

FEATURES:

Supports IEEE 802.11g and IEEE 802.11b standards
Provides two work modes: Infrastructure and Ad-Hoc Provides up to 54Mbps maximum transmisson rate and up to 300m maximum transmission range Auto-detects and changes the network transmission rate
Supports Soft AP to establish your wireless LAN networking with lowest cost
Supports WPS (PBC and PIN) encryption method to free you from remembering long passwords
Provides simple configuration and monitoring program Supports wireless Roaming function
Supports WMM to make your voice and video more smooth

DESCRIPTION:

The WL-700G-M USB adapter complies with IEEE802.11g, IEEE 802.11b standards with up to 54Mbps wireless transmission rate which is five times ordinary IEEE802.11b products. It also supports 64/128-bit WEP, WPA/WPA-PSK, WPA2/WPA2-PSK encryption and 802.1x security authentication standards to secure your wireless networking. Built-in Omni-directional antenna frees you from the wired cabling troubles and improves convenience and flexibility of the wireless utility for fast and mobile network sharing. Soft AP supported by W541U can help you establish wireless LAN networking with lowest cost. Besides, PBC and PIN encryption methods can free you from remembering the long passwords. Moreover, complete WMM support makes your voice and video more smooth.

Input Voltage Range 5v
Operating Temperature 0℃ ~ 55℃
Storage Temperature -20℃~65℃
Operating Humidity 10%~90% RH no condensing
Storage Humidity 5%~95% RH no condensing
Antenna Internal (2dBi)
Frequency Range 2.4~2.4835GHz
IEEE 802.11 Standards Supported 11b,11g
Transmission Power 18dbm
Sensitivity 54M:-72dBm@10% PER; 11M:-84dBm@8% PER;6M:-86dBm@10% PER;
1M:-88dBm@8% PER
Transmission Distance Outdoor: 300M
Indoor: 100M
