PRODUCTS \ LAN Products \ Switches Gigabit \ SWG240010-R

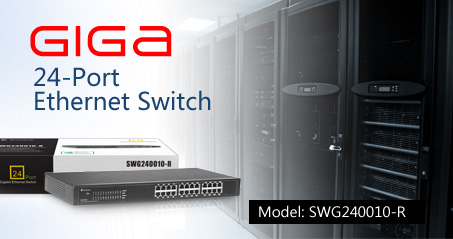

Item: 24 Port 10/100/1000Mbps Gigabit Switch
Item code: SWG240010-R

DESCRIPTION
The new high performance 24-Port Gigabit Switch is your ideal partner for users looking to run the next generation Network at your Business, Home Office or Education Department. Featuring the newly developed ASIC Processor which transmits your Gigabit (1000BaseT) data in the quickest possible time and assuring that the data is totally accurate, thus reducing the amount of Network retries and also helping to sustain the maximum highest traffic flow, no matter what Network or Operating System you have.

Ideal for current and future applications needing a super fast network connection such as Video and Voice Conferencing, Real-time IP-CCTV operations, multicast Video Streaming and high-end Server operations. Totally compatible with your existing Fast Ethernet (10/100BaseT) Network, the new Dynamode Gigabit Switch is your ideal partner for the next generation of Network applications, with reliability for total piece of mind.

FEATURE
24-Port 10/100/1000 Gigabit Ethernet Switch
Ideal for the next generation Networking Applications
Supports Full Duplex for up to 2000Mbps speeds
Automatic Cross over on each RJ45 Port
Advanced ASIC core assures speed and reduces data errors
Supports Gigabit Jumbo Packet Frames for total performance
High capacity 8K MAC address Routing table for larger Networks
Super-slim 1U high with status LEDs and quality construction
Internal, quiet Power Supply with Rack-mount Brackets included



SPECIFICATION

Standards and Protocols IEEE802.3, 802.3u, 802.3ab, 802.3z, 802.3x
Basic Function

CSMA/CD Ethernet 'Store and Forward' and 'Cut Through' Packet Delivery

MAC Address Table 8k Routing Address Table, ASIC Core
Transmission Method

'Store and Forward' and 'Cut Through' Packet Delivery

Ports 24-Port 10/100/1000Mbps auto-negotiation
Full and Half Duplex, up to 200Mbps connection speeds
RJ-45 (STP), Auto MDI/MDIX on all Ports
Network Media 10/100/1000BaseT: UTP category 3, 4, 5, 5e, 6 (maximum 100 metres)
EIA/TIA-568 100 Ohm Cabling, UTP or STP
LED Indicators Power, Link, Speed
Safety and Emissions
CE, FCC
Environment Operating temperature: -10°C-45°C (14°F-113°F)
Storage temperature: -15°C-60°C (5°F-140°F)
Relative Humidity: 10%-90%, non-condensing
Storage Humidity: 5%-90% non-condensing
Power 100-240VAC, 50/60Hz auto switching
